BV-CCV/15P

Category:

COMBINED CLAMPING
INNER RADIAL SEAL + PROPORTIONAL PRESSING

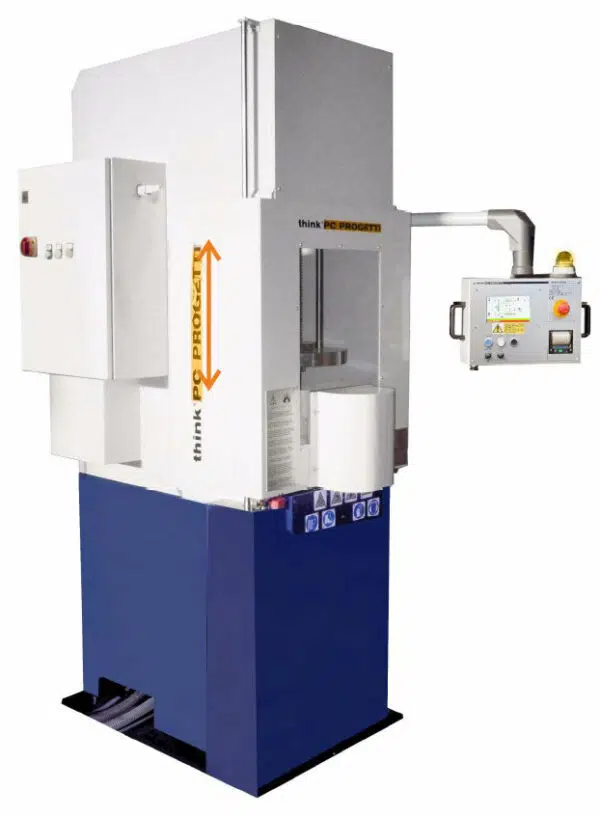

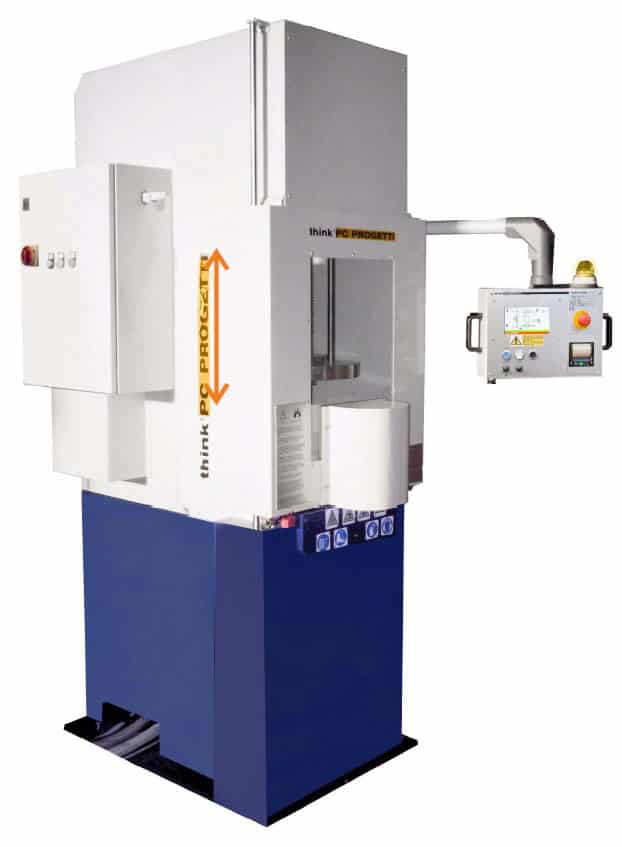

Vertical test rig with an automatic test sequence.

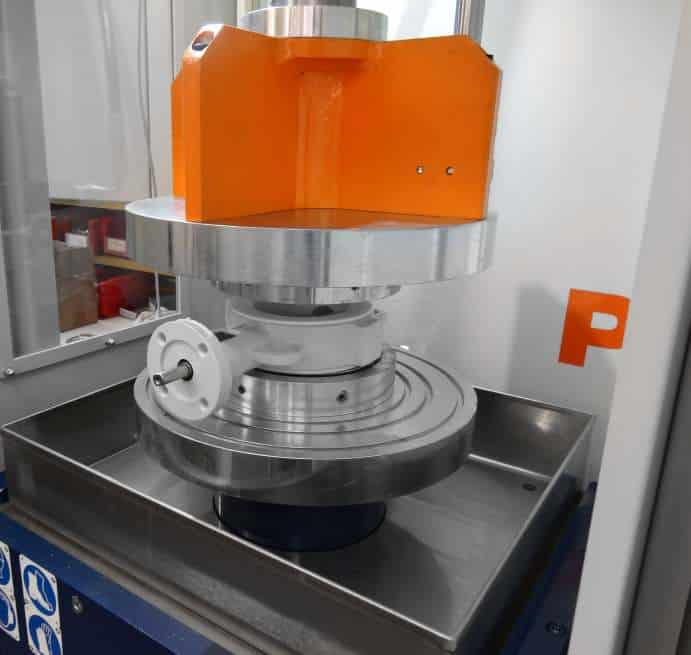

Combined clamping style: proportional press clamping and inner radial seals.
A protection against water jets surrounds the valve under test and it is automatically controlled with pneumatic cylinders.
A PLC controls test sequences that can be configured by a LCD touch screen.
Full automatic test cycles with leakage flan measuring (water fail) are available.

*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)

  • Reaction force15 TON (10% minimum press clamping) (See working limits table)
  • Valve length max590 mm
  • Valve length Min50mm
  • Loading heigh900mm
  • Water vessel300 Liters External
  • Termination allowedBW. SW, RF, RTJ
  • Clamping styleType: 3 – Combined: Proportional pressing & inner radial seal (bore plugs)
  • Clamping force controlAutomatic within 10%-100% interval, proportional to hydrostatic pressure inside the valve under test.
  • Reference standardsISO, DIN, API, ANSI, ASTM, FCI, BS (Other on request).
  • Hydraulic testH2O 700 bar MAX
  • Pneumatic test0.5 bar – 6 bar
  • Pneumatic supply6.5 bar @ 1100 Nl/min - Dry air not lubricated
  • Electric supply3PH + T, 380V@50Hz, 5KW
  • Dimensions (mech)730 (L) x 1010 (D) x 2340 (H) mm
