BO45-2CV/2000

Category:

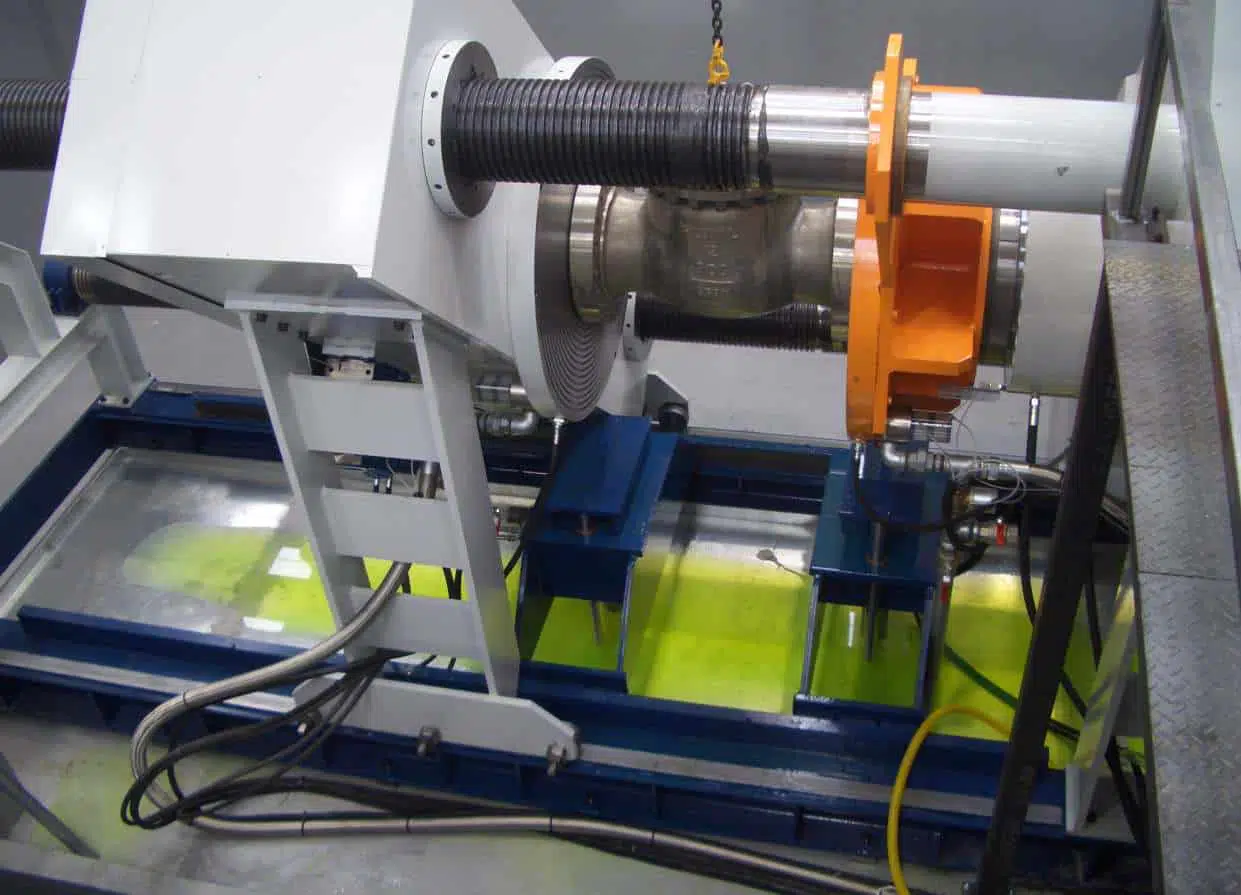

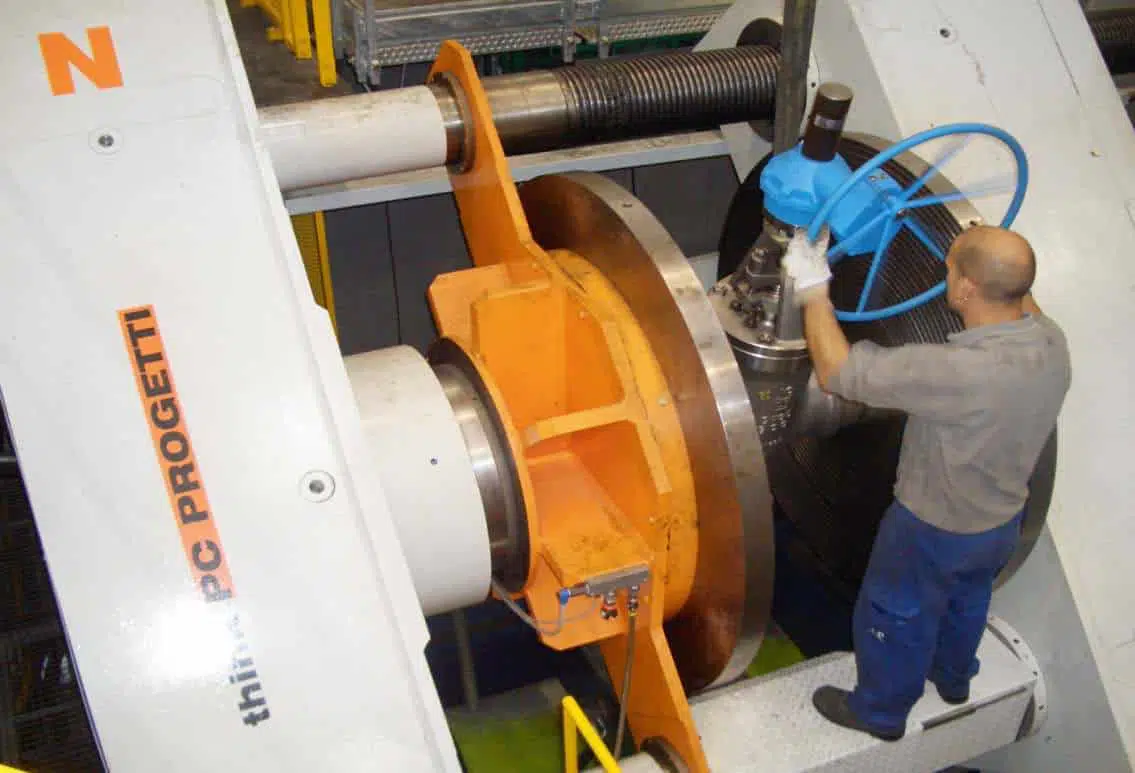

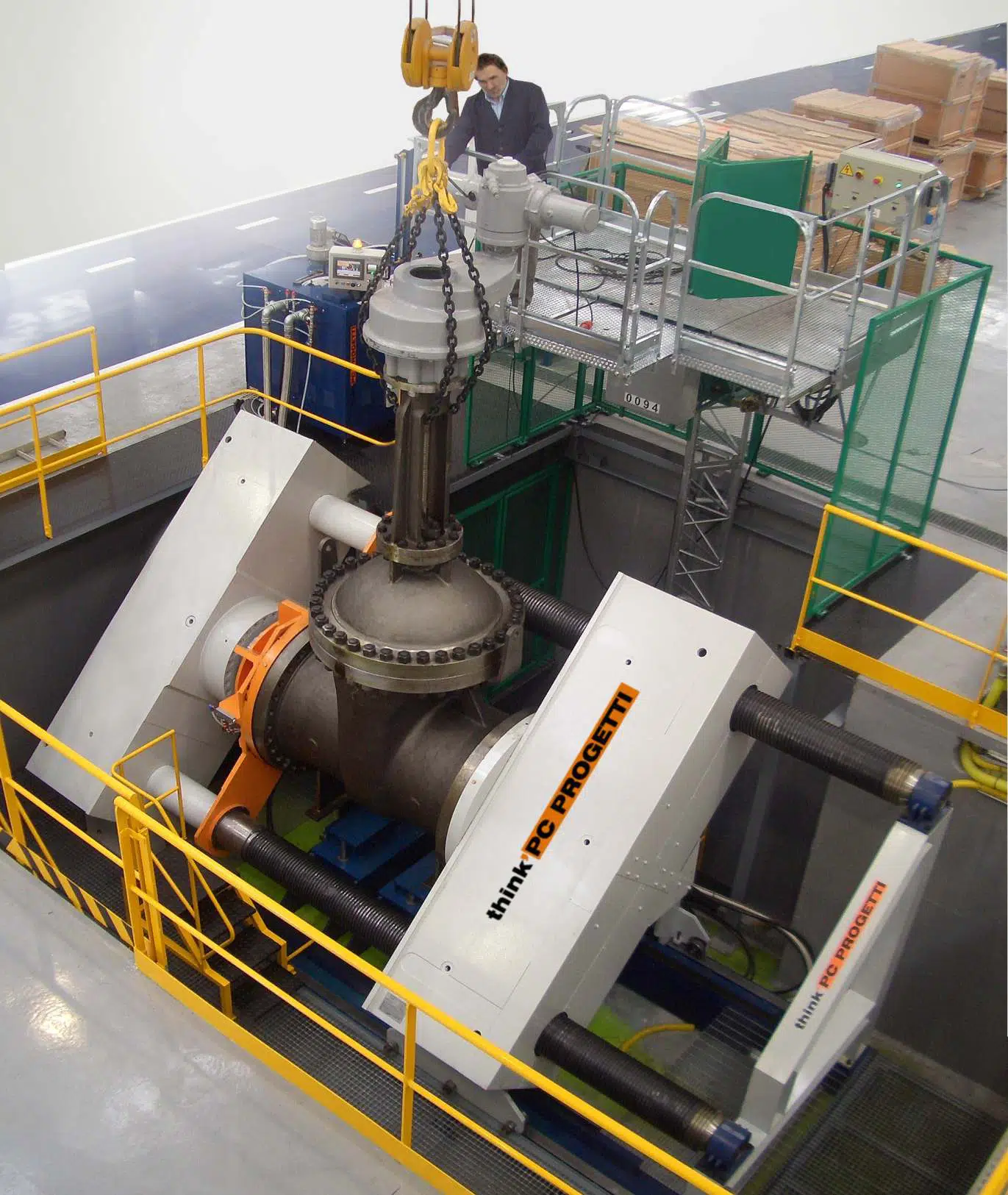

Horizontal test rig with combined clamping style: inner radial seal and press clamping facilities.
The mobile reaction bridge is moved by two screwed columns that assure complete absence of external forces on valves body and an hydraulic cylinder with or without proportional control.
This prerogative makes it compliant to the most widespread international test standards.
A water vessel is installed in the basement as water reservoir for test procedures.
Complete flow meter sets could be installed (see option) to perform seat leakage tests on control valves.
The rig is controlled by a SKA-1000 pressurization skid; to have more information about it please consult dedicated technical data sheets.
The rig could be completed with several options and accessories, please contact our sales office to have more information.

*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)

Horizontal test bench for valves - BO45-2CV/2000

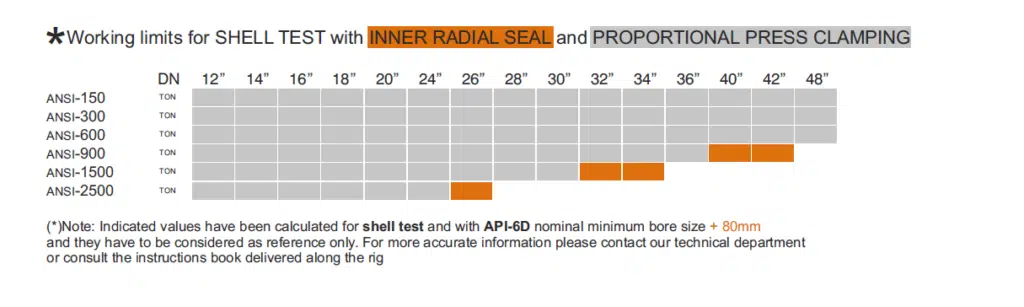

  • Reaction force2000 TON (10% minimum press clamping) (See working limits table)
  • Valve length max2900mm
  • Valve length min0mm
  • Columns inner clearance2100mm
  • Flow axes height2070 mm from the ground – 45° inclination from the ground
  • Basement water vessel2000 Liters
  • Lifters2x20 TON
  • Terminations allowedBW, SW, RF, RJ
  • Clamping styleType 3Combined Inner radial clamping & Pressing clamping with Proportional control.
  • Dimensions6000(L) x 3000(P) x 3570(H)(Mechanical structure)
